Tailgate Spring 16mm Long Leg Left Hand Loop

Tailgate Springs are a helical or spiral coil that store energy when twisted. Once twisted, resistance is applied in the direction of the wind (either left or right).

This force twists the coils tighter, in turn reducing the spring diameter and making the body longer.

(popularly used for ei. horsefloat,car trailer or equipment ramps, subject to weight)

• 16mm dia. rod  (rear view left side long leg up)
• coil OD. approx. 80mm
• coil ID. approx. 50mm
• Short leg length under. approx. 85mm
• Long leg Length up. approx. 850mm
• 30kg at 90 degrees, 50kgs at 120 degrees

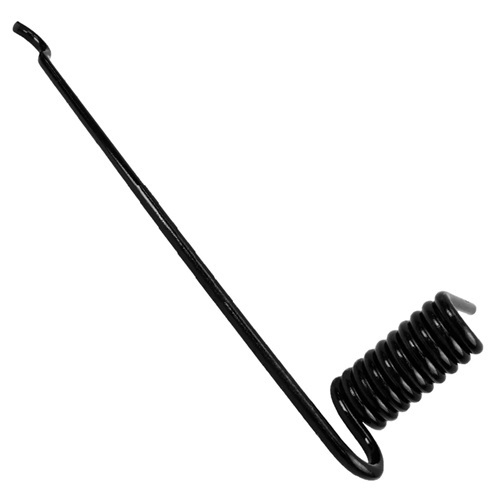

Please note: Picture is for illustration purpose only

001/16L-01614
