17 tread

17 Tread Handrail Kit

Single Side Only
Weight in Kg
29.20 kg
$ 498.58
inc gst
Qty

17 Tread Handrail Kit

17 Tread Handrail Kit - Single Side

Kit Contents:

  • 2x Curved End Cap for 42mm Round Tube
  • 1x Adjustable Elbow for 42mm Round Tube
  • 6x Post Base for 40x40 SHS with 4 Holes
  • 6x Adjustable Post Top for 40x40 SHS and 42mm Round Tube
  • 5x 40 x 40 x 2.0 Galvanised Square Tube @ 938mm (Plug-Welded to Bases)
  • 1x 40 x 40 x 2.0 Galvanised Square Tube @ 851mm (Plug-Welded to Base)
  • 1x 42.4 x 2.0 Galvanised Round Tube 32NB @ 5164mm
  • 1x 42.4 x 2.0 Galvanised Round Tube 32NB @ 250mm

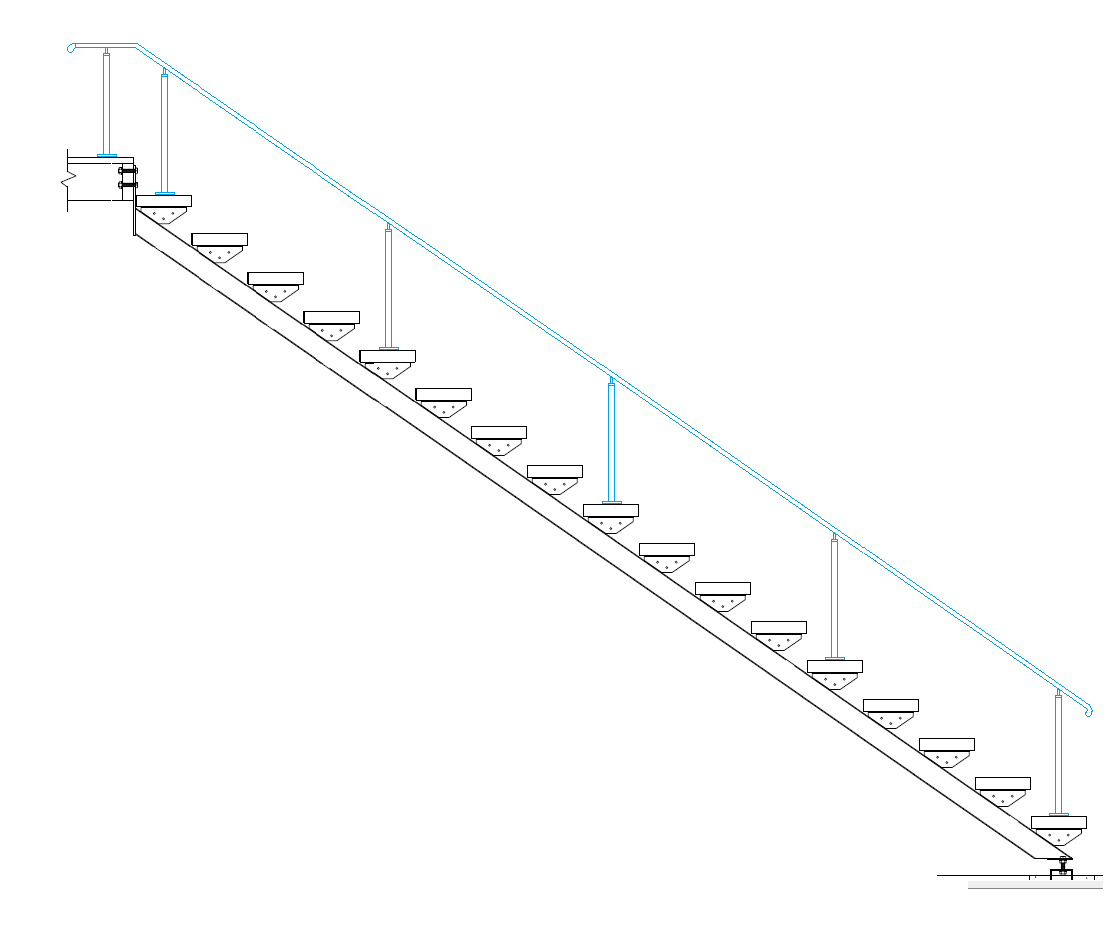

Specifications:

  • Vertical distance between treads (rise): 175mm
  • Tread width (going): 250mm
  • Handrail posts (938mm) to be fixed in the middle of the tread (125mm from nosing)
  • Top handrail post (851mm) center to be fixed 125mm in from the edge of the top landing
  • Kit does not include fixings or adhesives

Note:

  • Please note that this kit may not be compliant for all intended uses. It is the customer's responsibility to verify suitability prior to purchase.
