4 Tread Handrail Kit

Single Side Only
Weight in Kg
10.76 kg
$ 249.89
inc gst
Qty

4 Tread Handrail Kit

4 Tread Handrail Kit - Single Side

Kit Contents:

  • 2x Curved End Cap to Suit 42mm Round Tube
  • 1x Adjustable Elbow to Suit 42mm Round Tube
  • 2x Adjustable Post Top to Suit 40x40 SHS and 42mm Round Tube
  • 1x 40 x 40 x 2.0 Galvanised Square Tube @ 938mm (Plug-Welded to Base)
  • 1x 40 x 40 x 2.0 Galvanised Square Tube @ 851mm (Plug-Welded to Base)
  • 1x 42.4 x 2.0 Galvanised Round Tube 32NB @ 1199mm
  • 1x 42.4 x 2.0 Galvanised Round Tube 32NB @ 250mm

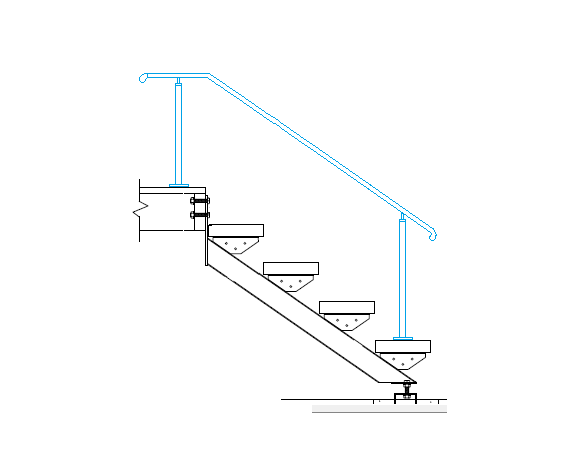

Specifications:

  • Vertical distance between treads (rise): 175mm
  • Treads width (going): 250mm
  • Handrail posts (938mm) to be fixed in the middle of the tread (125mm in from nosing)
  • Top handrail post (851mm) center to be fixed 125mm in from the edge of the top landing
  • Kit does not include fixings or adhesives

Note:

  • Please note that this kit may not be compliant for all intended uses. It is the customer's responsibility to verify suitability prior to purchase.
