6 Tread Handrail Kit

13.76 Tread Handrail Kit - Single Side

Kit Contents:

• 2x Curved End Cap for 42mm Round Tube
• 1x Adjustable Elbow for 42mm Round Tube
• 3x Adjustable Post Top for 40x40 SHS and 42mm Round Tube
• 2x 40 x 40 x 2.0 Galvanised Square Tube @ 938mm (Plug-Welded to Base)
• 1x 40 x 40 x 2.0 Galvanised Square Tube @ 851mm (Plug-Welded to Base)
• 1x 42.4 x 2.0 Galvanised Round Tube 32NB @ 1809mm
• 1x 42.4 x 2.0 Galvanised Round Tube 32NB @ 250mm

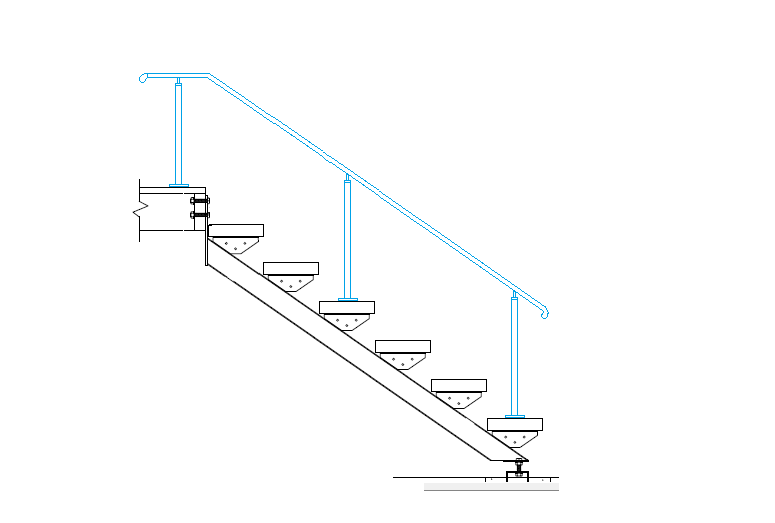

Specifications:

• Vertical distance between treads (rise): 175mm
• Tread width (going): 250mm
• Handrail posts (938mm) to be fixed in the middle of the tread (125mm from nosing)
• Top handrail post (851mm) center to be fixed 125mm in from the edge of the top landing
• Kit does not include fixings or adhesives

Note:

• Please note that this kit may not be compliant for all intended uses. It is the customer's responsibility to verify suitability prior to purchase.
