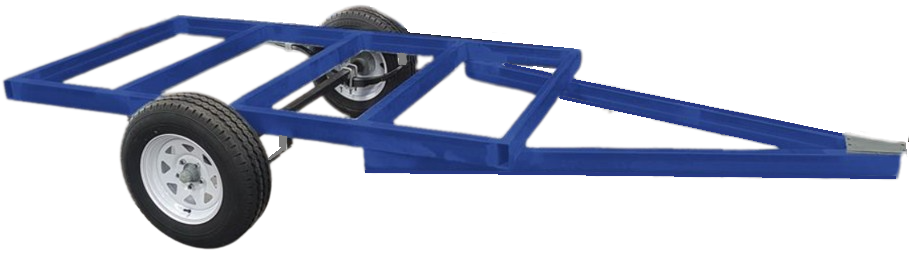

DIY FLAT TOP TRAILER FRAME KIT 1000kgs Rated

DIY - Weld it yourself Trailer Kit -               *Watch YouTube Video of Flat Top Trailer Getting Built*

Made to suit Standard Size Sheets of 2.4m x 1.2m  floor

You will receive:
2x 100x50x3mm RHS Ptd at 2000mm – Draw Bar / A Frame
2x 100x50x3mm RHS Ptd at 2315mm – Outer frame / Main runners
2x 100x50x3mm RHS Ptd at 1210mm – Front & read of frame
3x 50x50x3mm RHS Ptd at 1110mm – Inner cross members

Also comes with the following:
8mm 2 Hole Steel Coupling Plate
63 inch 40mm Axle 1000kgs Rated (upgrades to 1500kgs & Brakes available at extra cost)
2x Hubs Bearings and seals – FORD PCD
2x Spring Front Hangers
2x Spring Rear Hangers
2x 3.5 inch ½ Bolts for Springs
4x 40mm Galvanised U-Bolts
2x Fish plates
2x Axle Pads 2x 5 Leaf Slipper springs 1000kgs Rated (upgrade to 7 or 9 Leaf available at extra cost)
2 Hole Coupling 2000kgs rated
2x 2 inch x 1.5 inch Coupling Bolt

Add Ons (extra)
2x 185R14C White Sunraysia Rims & Tyre $250 (for both)
2x Galvanized steel Guards for $121 inc gst

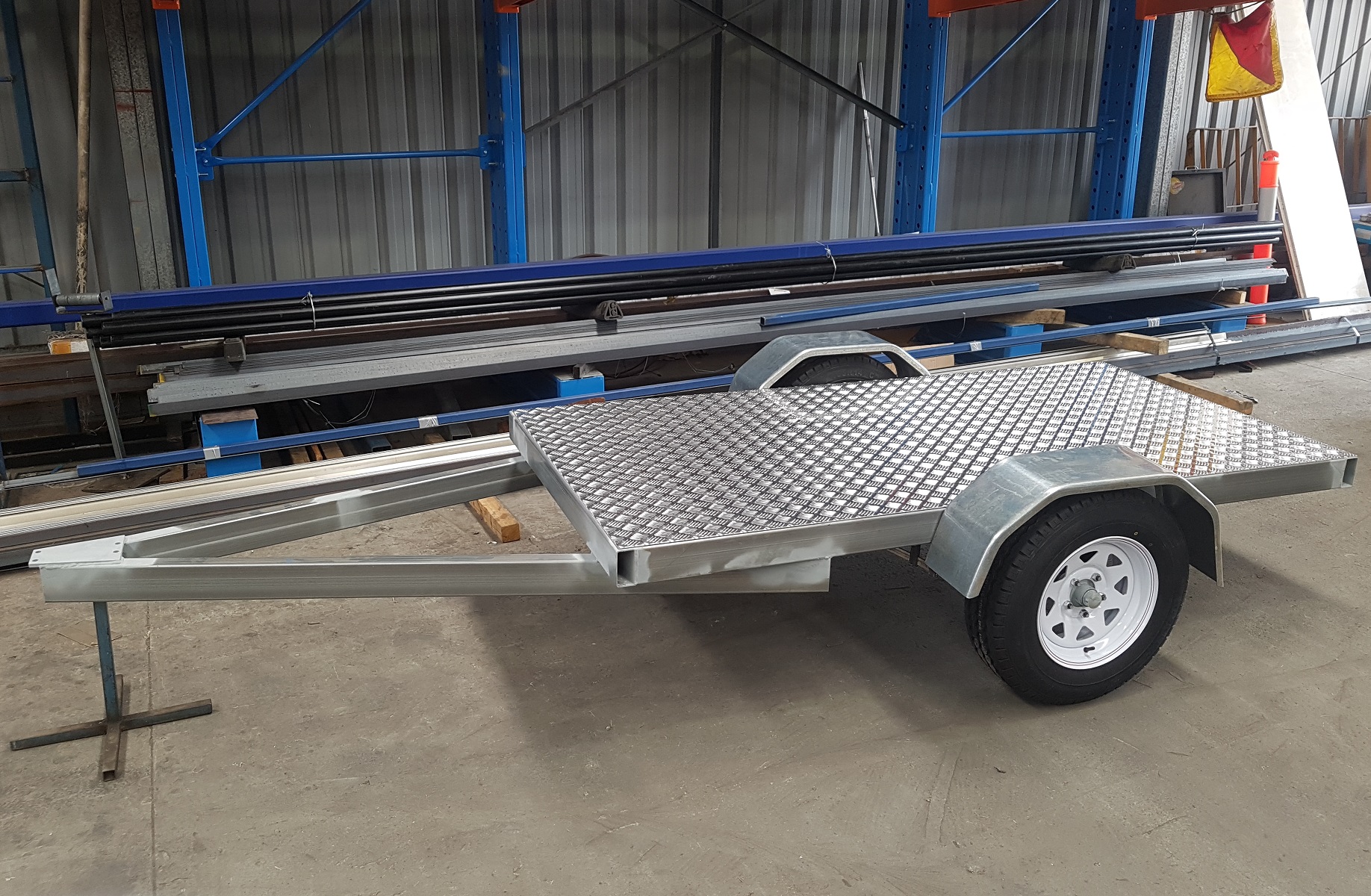

3mm Aluminium Checker Plate floor for $270.60 inc gst
Wiring Kit – 8m 7core cable + 7pin Magnetic Plug $31.90
LED Taillights (x2) $30.80

Pre-order on 02 45.45 28.28 This frame is great if you are looking at building your own trailer and saving money.

Steel will be cut to size and it’s made to suit standard size sheets of plywood, aluminium, Steel Checker plate and more.

They are also popular for bike / motorcycle trailer, ride on lawn mower, go-kart, flat top, plant and ICV firefighting trailer, just mount your water tank and off you go. ride on go kart horse float farm tanker irrigation fire fighting
